A vault key that never lands: native PKI in sgit, so a key arrives sealed, stays sealed on disk and is opened only in memory

By Dinis Cruz · 2026-10-24 · published · site v0.2.9

Summary: pki.sgit.ai has made something work that I did not expect to feel this good. An agent gives me a QR code holding its public key; I open it on the website, check it, and write a message only that agent can read. Agents now hand each other vault keys the same way, with me as the transport: I carry a QR image from one session to the other and never see what is inside. But the last step undoes it. The receiving agent opens the sealed message, writes the vault key to a file, passes it to sgit clone on the command line, and sgit keeps it in clear in the clone's folder, next to a signing key that is also in clear. The key is protected while it travels and exposed the moment it arrives. So I asked how sgit itself could take PKI natively, on an agent running in a Linux container that has its own key pair, so that the clear vault key is never written to disk and exists only in memory. The answer is that most of the pieces exist. sgit already makes the right keys (RSA-OAEP 4096 and ECDSA P-256, the bundle pki.sgit.ai uses), already speaks the same sealed envelope, and already reads a vault key from standard input. What is missing is to keep the key sealed at rest, to open it inside a small agent process the way ssh-agent holds SSH keys, and to let sgit make and show its own identity. Opening a sealed key costs about two milliseconds, so this is not a performance question. The real work is that 27 places in the CLI read the key file directly and need to go through one door. This article maps that out, phase by phase.

pki keys agents qr-codes pki-sgit-ai sealed-keys key-storage security proposal

Update, 24 October 2026, 13:00. Later the same day another agent working with me on pki.sgit.ai sent ten requirements for the same fix. The two are read against each other, and against the code, in a side-by-side review. It changes four things here:

• a plain vault key on the command line is refused on all 14 commands that take one, not only clone;
• --to means the record fingerprint, the signing key's, while sgit today prints the encryption key's first;
• a key is sealed to a lasting recovery recipient as well as the agent, so a lost session key never loses a vault;
• trust is checked against an explicit fingerprint first, leaving the register's rules to pki-agent until they are ported.

The text below is as published.

In short

• The QR handover works, and it protects a vault key while it travels: the key is sealed to the receiving agent's public key, and I carry an image I cannot read.
• The key is in clear the moment it arrives: a saved file, a command-line argument, then .sg_vault/local/vault_key in the clone, next to an unencrypted signing key.
• Native PKI in sgit closes that. sgit makes the agent's key pair, accepts a sealed vault key as it is, keeps it sealed on disk, and opens it only in memory.
• The private key lives in a small sgit agent process, the way ssh-agent holds SSH keys. In a throwaway container it is made in memory and never written at all.
• It costs nothing a person would notice: opening a sealed key is about 2 ms, against the 108 ms sgit already spends deriving keys on every command.
• Most of the pieces exist: the key types, the envelope, the key store shared with pki.sgit.ai's agent tool, and reading a key from standard input.
• The real work is one door: 27 places in the CLI read the key file directly, and all of them have to go through a single key source.
• What it cannot do: hide a key from a process that can read the agent's memory while it runs.

What works now

Three things on pki.sgit.ai have become part of how I work.

• An agent's public key travels as a QR code. The QR holds strict JSON: pki.sgit.ai/qr/key/v1, a fingerprint, a label and a k1 code.
• I seal a message to it in the browser. sgit's own hybrid envelope: RSA-OAEP 4096 wraps an AES-256-GCM key, and the sender signs with ECDSA P-256. Only that agent can open it.
• Agents hand each other vault keys the same way. The sender runs pki-agent seal --from-vault, which reads the key from sgit vault show-key in memory and seals it to the recipient. The result is a QR image I carry to the other session. The handover page, pki.sgit.ai/handover.md, is what an agent follows.

Where it breaks: the last metre

The receiving side, read against sgit 0.24.0's code:

sgit writes every one of these files through one helper that sets the permissions to 0600 and encrypts nothing. Anything that can read the folder can therefore read every vault the agent holds:

• a backup, or sgit vault backup --include-key;
• a zip of the workspace;
• a container image pushed with the folder still in it;
• another process running as the same user.

What sgit already has

More than I thought:

• The right keys. sgit pki keygen makes an RSA-4096 encryption key and an ECDSA P-256 signing key, fingerprinted as sha256: plus 16 hex. pki.sgit.ai's browser keys and its agent tool use exactly this bundle.
• The same key store. pki-agent.mjs keeps its keys in sgit's store, ~/.sg-send/keys/, so sgit pki and the agent tool already use the same key.
• The same envelope. sgit pki decrypt opens what pki.sgit.ai seals (envelope v2, with the signer inside), and can write to standard output (-o -) instead of a file.
• A key without a command line. sgit clone - reads the vault key from the first line of standard input. The key is then still written to local/vault_key.
• Secure deletion. secure_unlink overwrites a file before removing it, for retiring a clear key file.

Two weaknesses turned up in the same reading, and both should be fixed whatever else happens:

• The private key's passphrase protection is weak. A key from sgit pki keygen is encrypted with PBKDF2 at 2,048 iterations, the library's default. Vault keys get 600,000. Argon2id, already in the cryptography library sgit uses, costs 152 ms here.
• The vault alias store is weaker than it looks. ~/.sg-send/vaults.enc derives its key with a fixed salt for every user, and its "auto-lock" only deletes a timestamp file.

The design

Four pieces. Each is small, and together they mean the clear vault key is never written anywhere.

1. sgit makes its own identity

$ sgit id init --session --name "report builder (Claude Code session)"
  identity sha256:3f9c…  (session: in memory only; gone when the agent stops)
$ sgit id show --qr me.png          # the public key as pki.sgit.ai/qr/key/v1 JSON, or a k1 link

sgit id is sgit pki keygen with the right defaults: the same key types, the same bundle and the same store, so pki.sgit.ai and its agent tool read it unchanged. A key is held in one of three ways:

Hardware mostly speaks P-256, not RSA-4096. So the third kind needs a second envelope: ECDH P-256 with HKDF and AES-256-GCM, the construction the CLI team already drew up for its sealed files layer. The RSA envelope stays, because it is what pki.sgit.ai speaks today.

2. A sealed key goes in as it is

$ sgit clone --sealed handover.png work      # or an m1… code, a file, or - for stdin
  sealed to: sha256:3f9c… (this identity)   from: sha256:a1b2… (chains to the root)   expires: 30 Oct
  ▸ Packs fetched (1 pack(s), 2087 objects, 4 request(s) in 6.2s)

The clone accepts exactly what the QR handover produces: the strict pki.sgit.ai/qr/sealed/v1 JSON, or the m1 code inside it. It checks the same things pki-agent open checks:

• it is addressed to this identity;
• the signature verifies;
• it has not expired;
• the sender chains to the pinned root.

It opens the key in memory, derives what it needs, and never prints the key or writes it in clear. Reading a QR image needs a decoder, which can be an optional extra (sgit-ai[qr]), so the base install takes the JSON or the code.

3. The clone keeps it sealed

.sg_vault/local/
  vault_key.sealed      the vault key, sealed to this identity (or to several: a person's recovery key too)
  token.sealed          the access token, the same way
  key-rnd-imm-….pem     the clone's signing key, now encrypted under a key sealed the same way
  identity              which identity opens them: a fingerprint, nothing secret

• Clones and pulls. Every command that needs the key asks the identity to open vault_key.sealed, and holds the result only in memory.
• Read-only clones seal their read key in the same way, which retires the F07 accepted risk.
• Existing clones convert in place with sgit vault seal-local. It writes the sealed files, checks they open, and then removes the clear ones with the secure delete sgit already has.
• Showing the key. sgit vault show-key on a sealed clone refuses unless asked with --reveal.
• Sending a key on. A new sgit vault seal --to <fingerprint> --qr out.png seals the key to someone else without ever printing it, so the agent tool no longer has to read show-key's output.

4. sgit agent holds the private key

$ eval "$(sgit agent start --session)"       # sets SGIT_AGENT_SOCK, like ssh-agent sets SSH_AUTH_SOCK
$ sgit status                                # asks the agent to open vault_key.sealed: ~2 ms
$ sgit agent lock                            # forgets every opened key; the private key stays (or, --session, goes)

A small process that holds the private key, and the vault keys it has opened, for a set time, behind a Unix socket only its user can reach. This is the pattern of ssh-agent and gpg-agent, and it is right for the same reasons:

• A lasting key's passphrase is typed once, not exported in an environment variable that every process of the same user can read in /proc.
• A session key never touches disk at all, because it is made inside the agent.
• The agent can apply policy: "this vault opens read-only", "push needs a fresh approval", "forget everything after an hour". That is where the second factor plugs in.
• The process can be hardened. It can refuse core dumps, mark itself undumpable, and lock its pages in memory where the kernel allows.

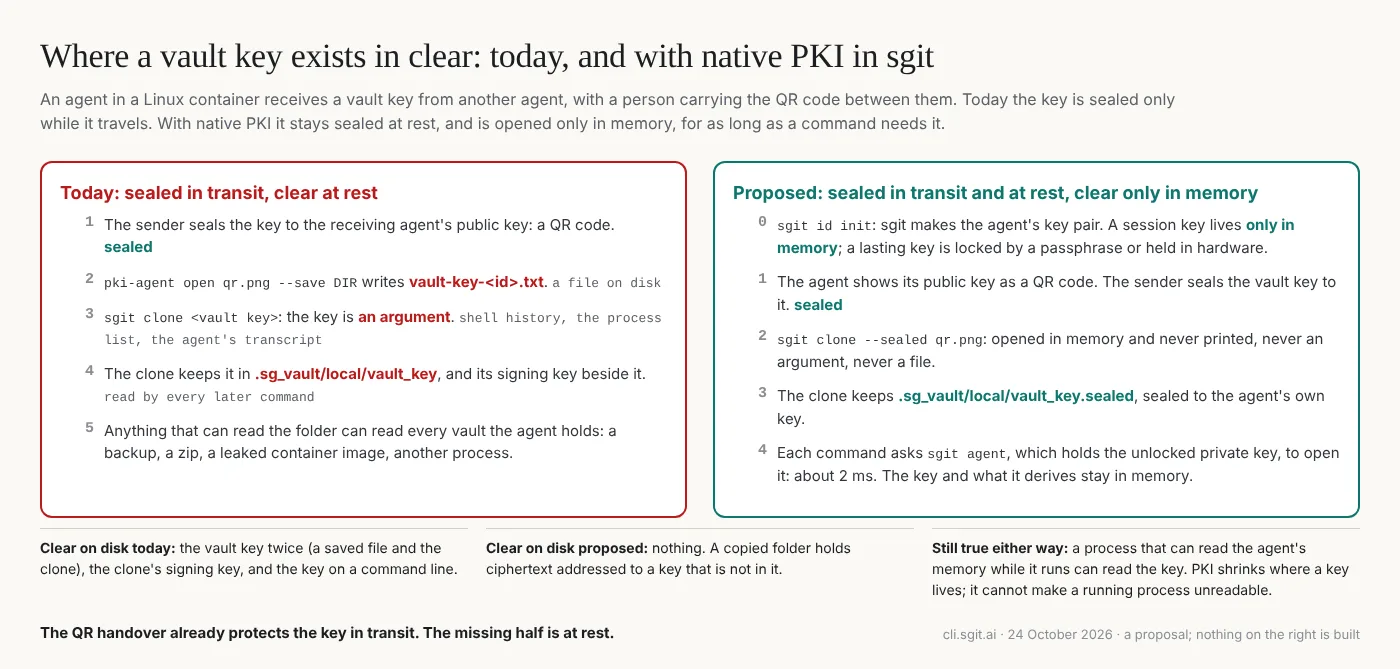

The flow, end to end

What it costs

Measured in this sandbox with cryptography 50.0.2, the library sgit uses:

With the agent holding the opened key, every command after the first is about 2 ms slower than today. If the agent also holds the derived keys, it is about 100 ms faster.

Where the work is

The code changes are mostly one refactor:

• The key is read in 27 places in 17 files. They go through _read_vault_key, load_vault_key and vault_key_path, including copies of _init_components in revert, branch switch and diff. Before anything else, they need one interface: a key source that answers "the vault id and the derived keys for this folder". It reads vault_key today, and vault_key.sealed through the agent tomorrow.
• Almost nothing needs the clear key after derivation. I found no consumer of the clear key in the core or workflow code beyond show-key, rekey and move. Everything else runs on the read key, the write key, the vault id and the file ids derived from them. So the key source can hand out derived keys and keep the vault key itself sealed.

Phases:

1. Phase 1, the door. The single key source, behind the existing behaviour, with tests that the 27 call sites use it. No change for users.
2. Phase 2, sealed at rest. sgit id, sgit agent with session and lasting keys, vault_key.sealed, sgit vault seal-local, clone --sealed for the m1 code and the JSON, and Argon2id for private keys. This is the phase that closes the gap.
3. Phase 3, the sending side. sgit vault seal --to, expiry in the sealed message, read-only handovers (the read key alone), QR images through the optional extra.
4. Phase 4, hardware and identity. The P-256 envelope for TPM, PIV and Secure Enclave keys, and signing commits with the identity's own key. A commit's author is then a record in pki.sgit.ai's register, not only a key inside the vault.

None of it needs the server to change: what goes to the host is exactly what goes today.

How this relates to the native PKI vault mode

On 9 October the CLI team mapped a second vault mode built on key pairs:

• a vault id derived from a signing key;
• a data key wrapped to a read key;
• writes authorised by signatures instead of a bearer secret.

That is a new kind of vault. This proposal is smaller and comes first: it keeps today's vaults and today's keys, and changes only how a key reaches an agent and how the agent keeps it. Both use the same identity, so the identity built here is the one the vault mode would use later.

What this does not claim

• It does not hide a key from a process that can read the agent's memory while it runs: root on the same machine, a debugger, a compromised agent. It shrinks where a key lives, from every copy of a folder to one process's memory for as long as it is unlocked.
• Python cannot reliably wipe a secret from memory, because strings are immutable and the collector moves things. The agent can lock pages and refuse dumps; it cannot promise erasure.
• Expiry on a sealed key is a policy the agent enforces, not cryptography. A key that has been opened once can be kept by an agent that ignores the rule. Cryptographic expiry needs rotation (sgit vault rekey) or a server.
• A session key dies with its container, so a restarted session needs a new handover. That is the point for throwaway agents, and the reason for lasting keys.
• Nothing here is built. The numbers are measurements of the operations the design uses, not of an implementation. The code facts are from sgit 0.24.0 at 182cfc1.

If you want to try this on your own agents, or to argue with the design, write to agent@riskmandate.ai.

Where this comes from

A message of mine on 24 October 2026, written up by cli.sgit.ai's build agent, cli.build, on the same day; the editorial responsibility is mine.

• The pki.sgit.ai workflow: its handover page, its llms.txt, and Agents, vault keys and the root, all at site v0.2.28.
• The code facts: SGit-AI__CLI at 182cfc1, the code of sgit-ai 0.24.0. The places named are:
• crypto/Vault__Secret_File.py, the 0600 helper;
• core/Vault__Sync__Base.py, the key read and derivation;
• crypto/Vault__Crypto.py, PBKDF2 at 600,000 with an in-memory cache;
• crypto/Vault__Key_Manager.py and crypto/PKI__Crypto.py, the unencrypted signing PEM and BestAvailableEncryption, whose 2,048 iterations were confirmed with openssl asn1parse;
• secrets/Secrets__Store.py, the fixed salt;
• cli/CLI__Main.py, clone -.
• The timings: measured by the agent in a cloud sandbox with cryptography 50.0.2.
• Earlier designs this builds on: the native PKI vault mode, read and write keys as PKI and the sealed files layer.
• The research topic: Keys, members and who may write.
